KAN-therm at the ISH exhibition in Frankfurt!

Thank you for visiting our stand at the ISH 2017 in Frankfurt am Main.

ISH is the largest international event in the field of heating, air conditioning, ventilation and water and bathroom equipment.

Once again we have presented the offer of innovative KAN-therm System in the field of heating and water, including new, intelligent mobile application KAN Smart Control for managing the temperature throughout the house, from anywhere in the world.

Browse the product news, we've presented at the exhibition:

KAN SMART Control

Lets you control the wireless automation System KAN-therm Smart.

Install the application on your tablet or smartphone and control the temperature in your home or work, wherever you are. The system is user-friendly, and operation is smooth and simple. Everything is tailored to your needs!

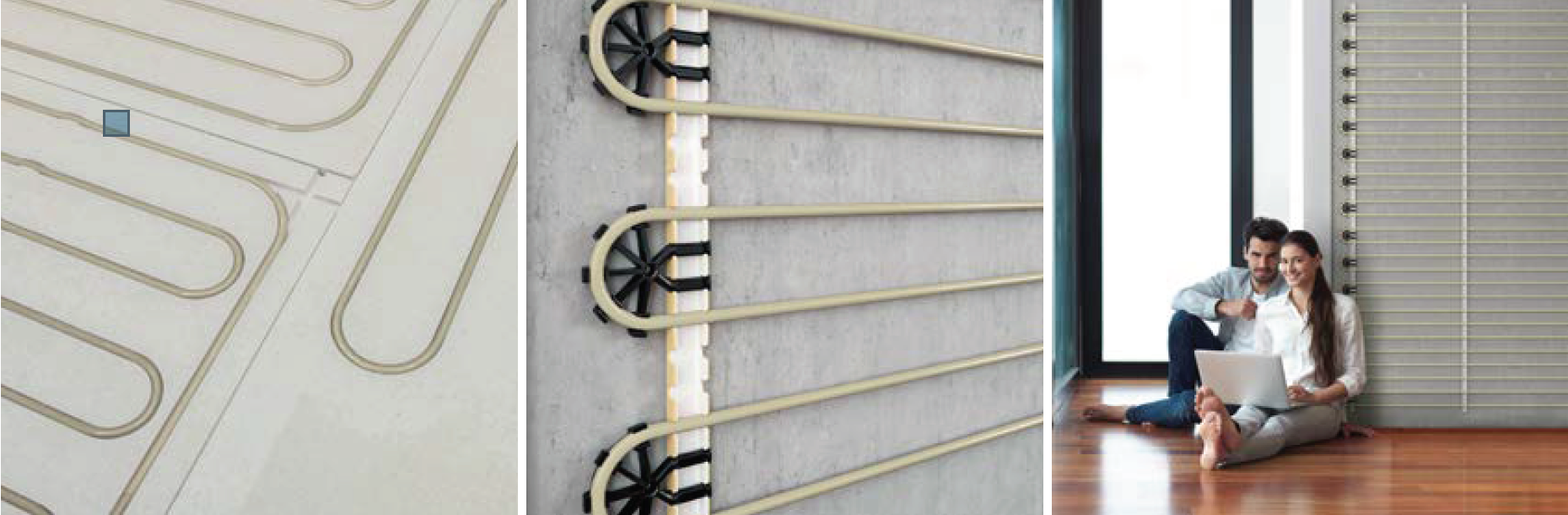

KAN-therm WALL System

KAN-therm Wall wall heating system (wet method) is fitted with the use of plastic rails.

In the case of this method the heating pipes are pressed into the rails provided for this purpose.

Then the pipes are covered with a layer of plaster.

Benefits:

Comfortable radiation warmth.
No dust dispersing.
Low outside air temperature.
Low inertia.
The KAN-therm wall heating system (dry method) is fitted with the use of partition drywalls
The heating pipes are integrated in modules connected together with the use
of special elements of the Tichelmann system. After mudding
the modules can be finished with paints, wallpapers or ceramic tiles.

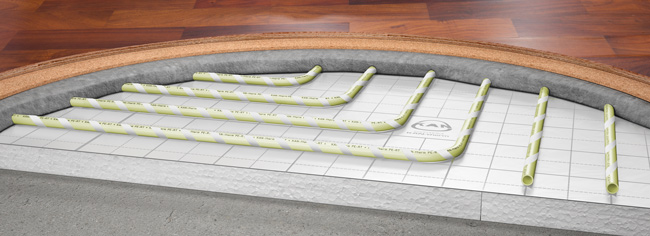

Premium TBS System (dry method)

Premium TBS System (dry method) Premium is an extension to the TBS product group.

Specially shaped Styrofoam panels for laying with 12.5 and 25 cm distance
Special aluminum fins
Thanks to the use of special mats the tiles or parquet can be laid immediately
Panels for laying in 12.5 and 25cm distance with aluminum sheet
Fast and safe laying thanks to the use of finished sheet elements with heat transfer
Quick and easy trimming of profiled panels thanks to the integrated cut marks
Low fitting height, only 30 mm
Very good thermal efficiency with aluminum heat transferring panels

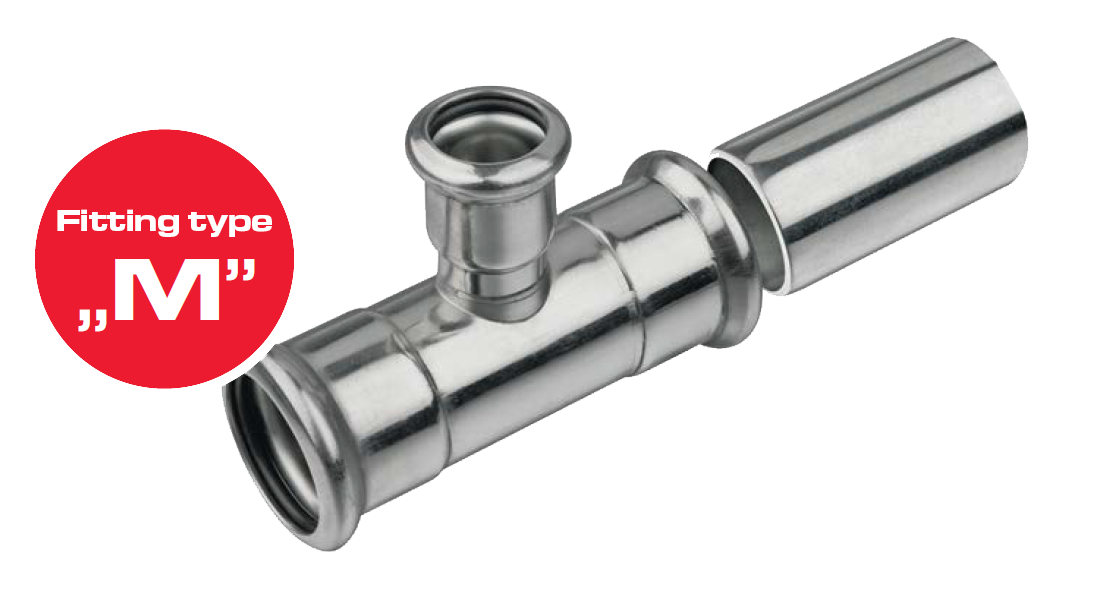

System KAN-therm Steel-M

The system is used in multi-family housing and public buildings, to construct new, indoor heating installations.

Its material specification and comprehensive range of products allows for performing complete, closed-circuit pressure installations (without the access of air to installation medium).

Due to the simplicity and safety of assembly, thanks to secure and fully tested “Press” assembly technique (which does not require the use of open fire), the KAN-therm Steel System is recommended for replacing old, corroded steel heating installations in multi-family buildings.

Diameter range: 15 – 108 mm

Connection technique: Joining system elements in the “Press” technology allows for acquiring joints with minimum pipe cross-section narrowing, which considerably reduces pressure loss in the entire installation and produces excellent hydraulic conditions.

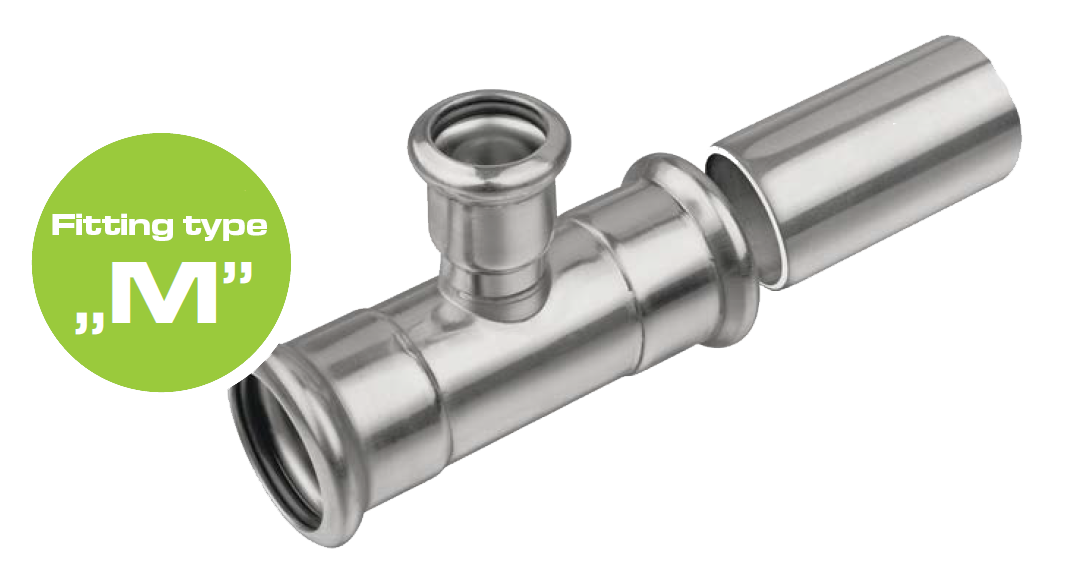

System KAN-therm Inox-M

The system is designed for constructing new, complete (risers and horizontal feeding pipes), indoor-use heating installations as well as hot and cold tap water installations in multi-family housing buildings.

Due to the highest quality of material used in the production of pipes and fittings (stainless steel), the KAN-therm Inox System is particularly recommended for performing installations in high standard construction projects or investments requiring a high cleanness standard, such such as e.g. heating or tap water installations in hospitals, laboratories, medical offices, etc.

Diameter range: 12 – 168 mm

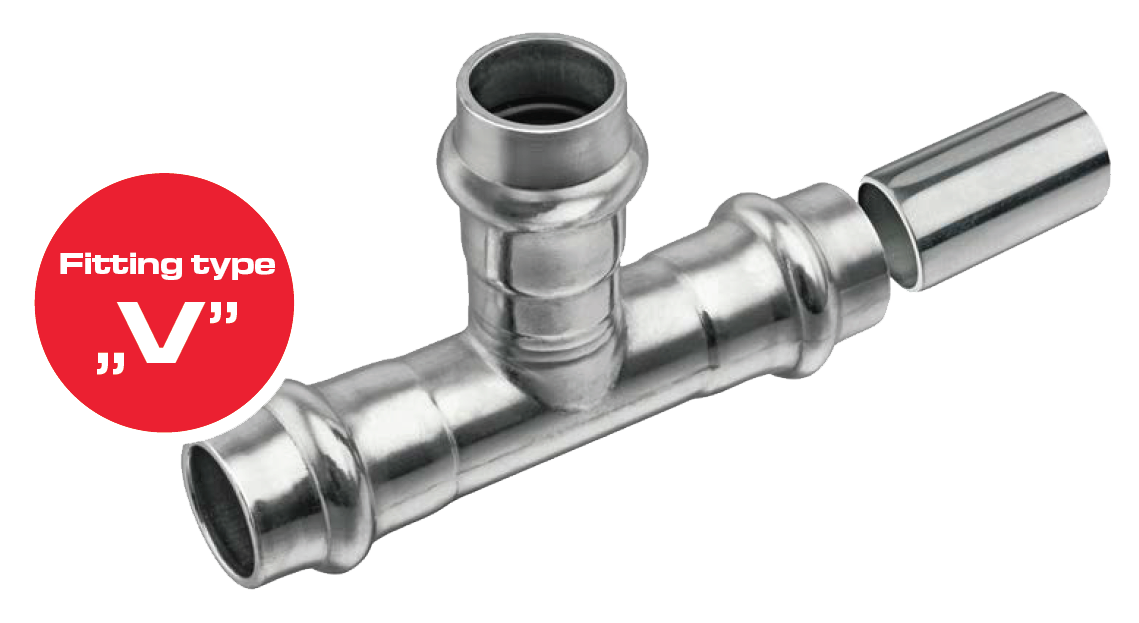

System KAN-therm Steel-V

The system is used in multi-family housing and public buildings, to construct new, indoor heating installations.

Its material specification and comprehensive range of products allows for performing complete, closed-circuit pressure installations (without the access of air to installation medium).

Due to the simplicity and safety of assembly, thanks to secure and fully tested “Press” assembly technique (which does not require the use of open fire), the KAN-therm Steel-V System is recommended for replacing old, corroded steel heating installations in multi-family buildings.

Diameter range: 15 – 54 mm

Connection technique: Jointing KAN-therm Steel-V System elements is performed utilizing a simple, fast and, most importantly, safe (without open flames) “Press” technique, based on pressing the fitting on the pipe using special tools.

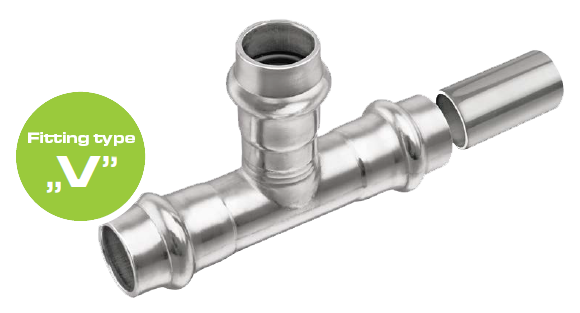

System KAN-therm Inox-V

Due to the highest quality of material used in the production of pipes and fittings (stainless steel), the KAN-therm Inox-V System is particularly recommended for performing installations in high standard construction projects or investments requiring a high cleanness standard, such as e.g. heating or tap water installations in hospitals, laboratories, medical offices, etc.

Durchmesserbereich: 15 – 54 mm

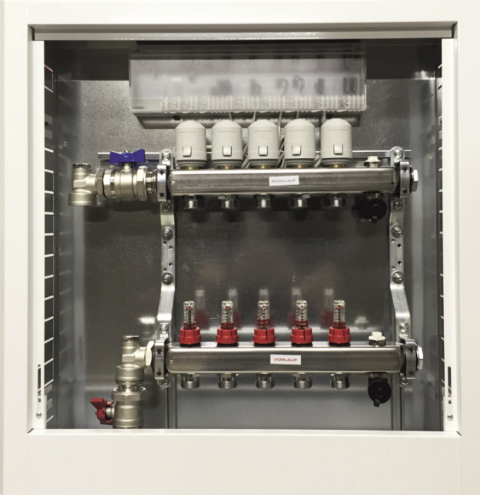

KAN‑ready Distribution System

From the beginning the KANtherm GmbH Company focuses on creation of a system with the highest

quality and functionality at an affordable price.

The company objective is to meet the requirements of customers with a wide range of perfectly matched products

The combination of company competences has led to the creation of the KANready distribution system, a solution that ensures

fast and easy installation for the professionals. Of course, the finished and tested electrical system is included.

New in KAN-therm offer:

Pre-mounted electrical cabinets
AP or UP switchboard
Stainless steel distributor, 2-12 circuits
The set for horizontal or vertical divider installation
Actuators
Terminal strip
Ready electrical system, pressure testing.

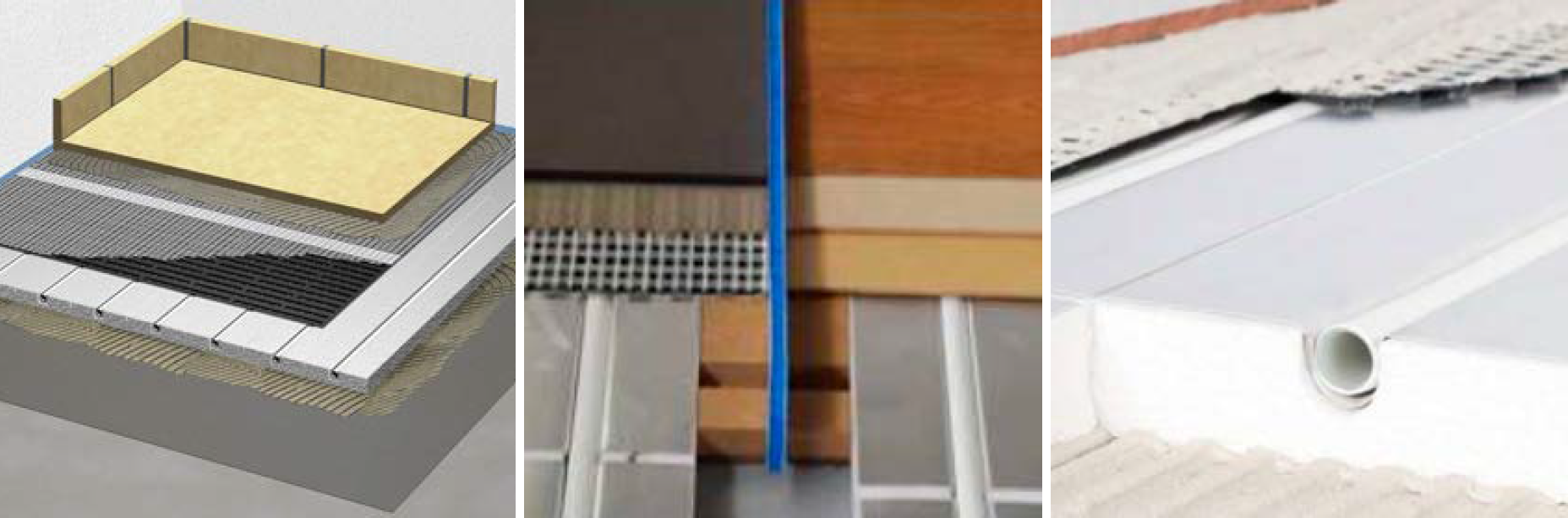

KAN-therm Klett System

The design of the styrofoam floor heating protected with foil (roll or plate) is a solution belonging to the system made with the wet process.

The heating pipes are fitted in the adhesive fabric using the special clamp, and then covered with concrete or fluid screed. After this floorings (parquet, panels, etc.) can be laid on the screed.

Benefits:

Fast pipe installation without using tools.
Easy removal of heating pipes from the insulation.
A large choice of insulated panels.
Laying pipes in a variety of configurations.
When an adequate isolation is used, you can create objects with higher utility load.
